LX521.4 Complete System

Full system polar response measurements (all drivers summed)

Back to Main Page

Measurement Details

Juan's measurements - Full 360 deg coverage
Complete System: These measurements capture the LX521.4 with all drivers active and crossover applied.

Configuration: LX521 HIGH MID INV ORIGINAL

Angles: 0, 15, 30, 45, 60, 75, 90 degrees

Coverage: Front + Rear measurements (full 360 deg)

Interactive Plots (HTML)

Polar & Directivity

Frequency Response by Angle

Contour Plots (Normalized)

Contour Plots (Absolute)

Measurement Details

Static Plots - LX521.4 Complete System (PNG) - 360 deg

Core Analysis

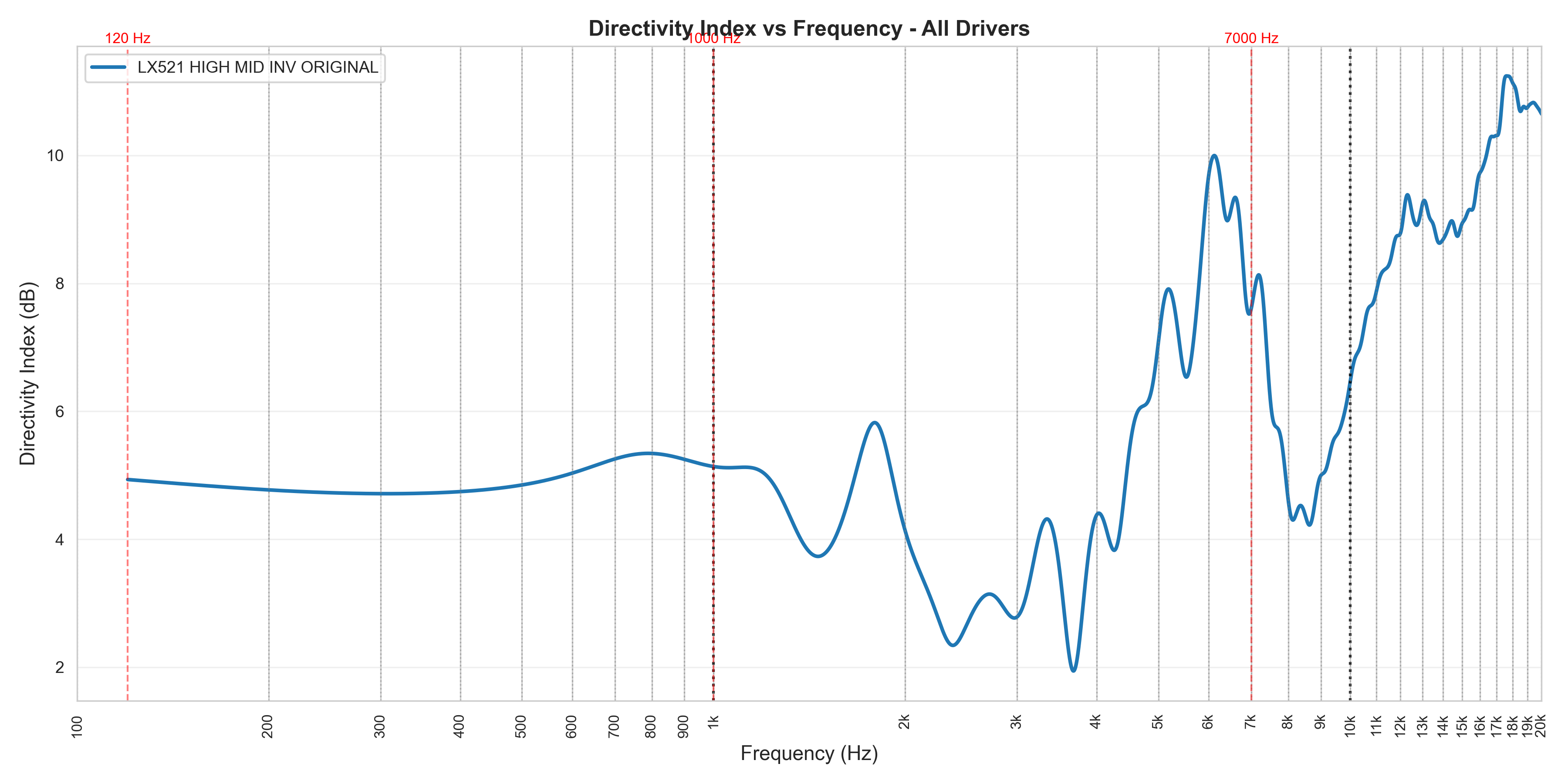

Directivity Index
Directivity Index

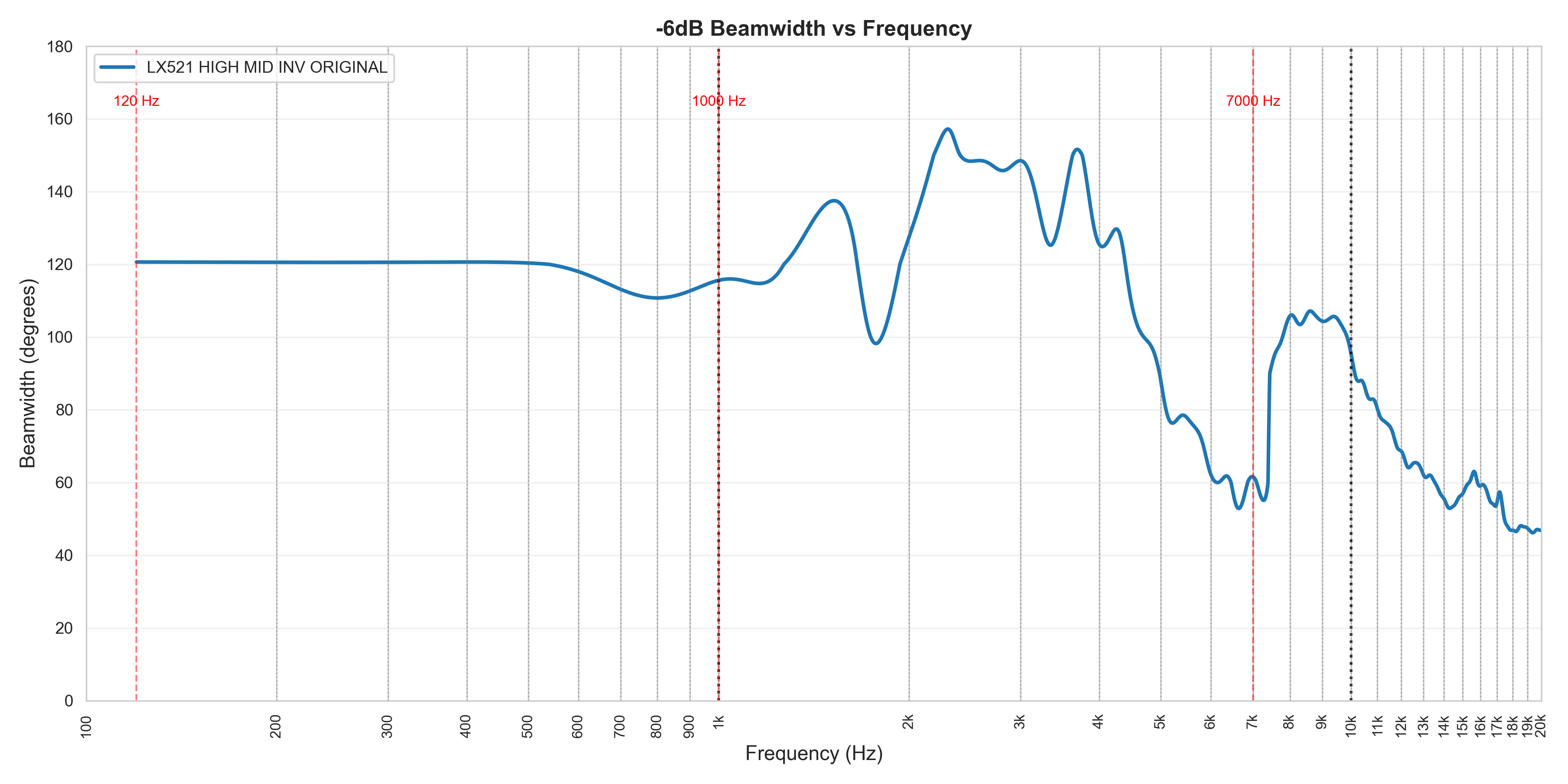

Beamwidth
Beamwidth

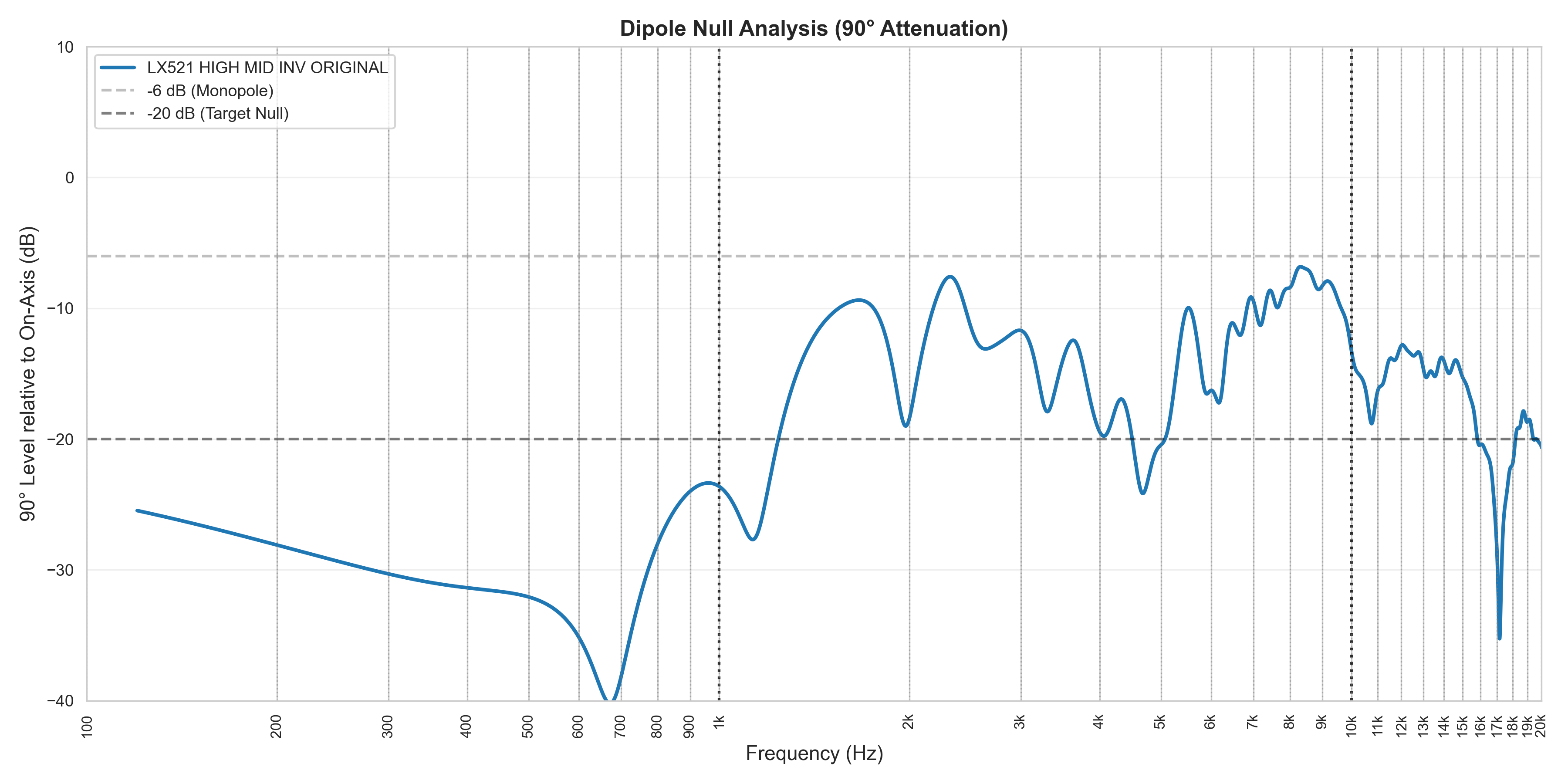

Dipole Null Analysis
Dipole Null Analysis

Polar Diagrams (360 deg)

Polar Gallery

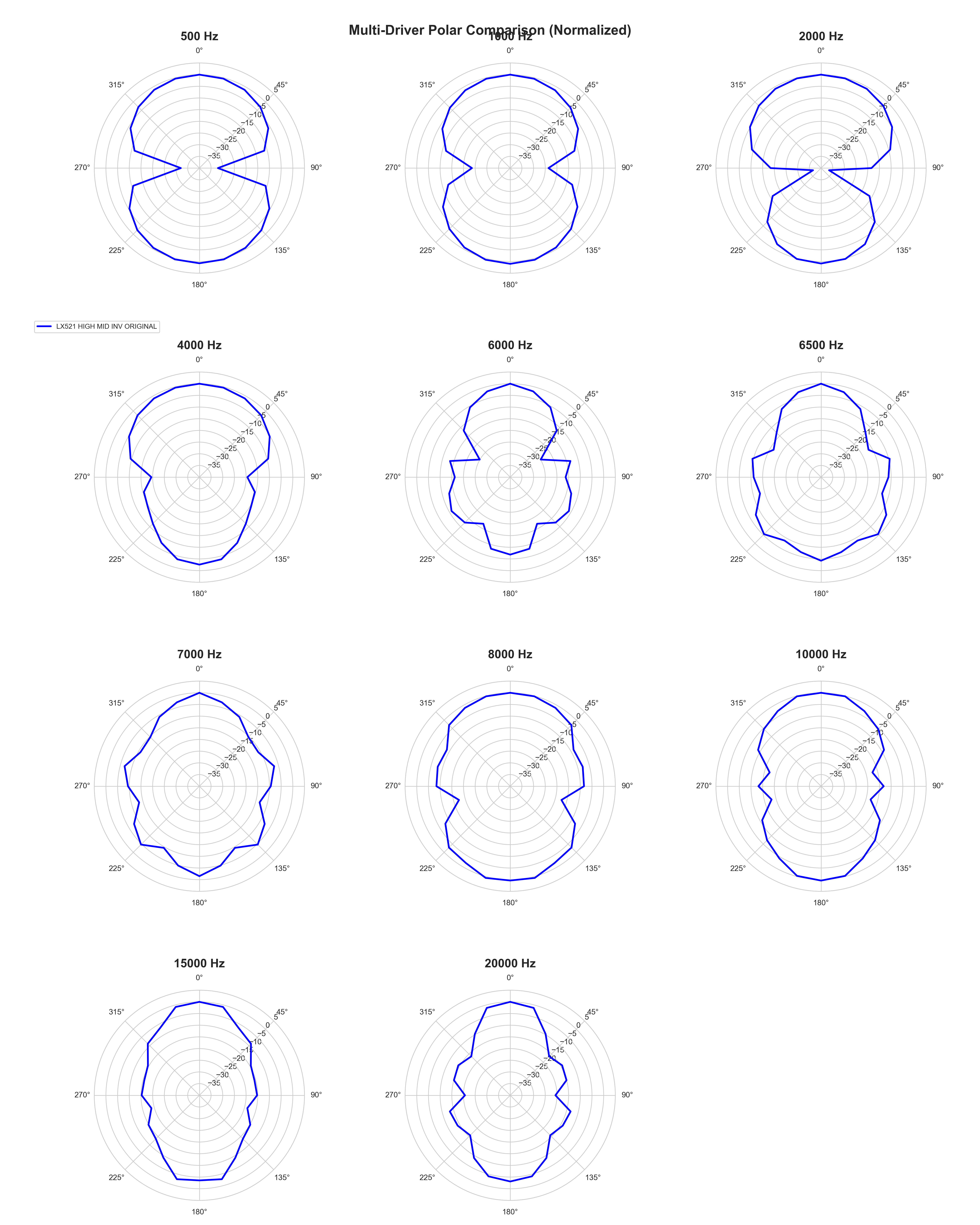

Polar Gallery (360 deg)
LX521 HIGH MID INV ORIGINAL Polar

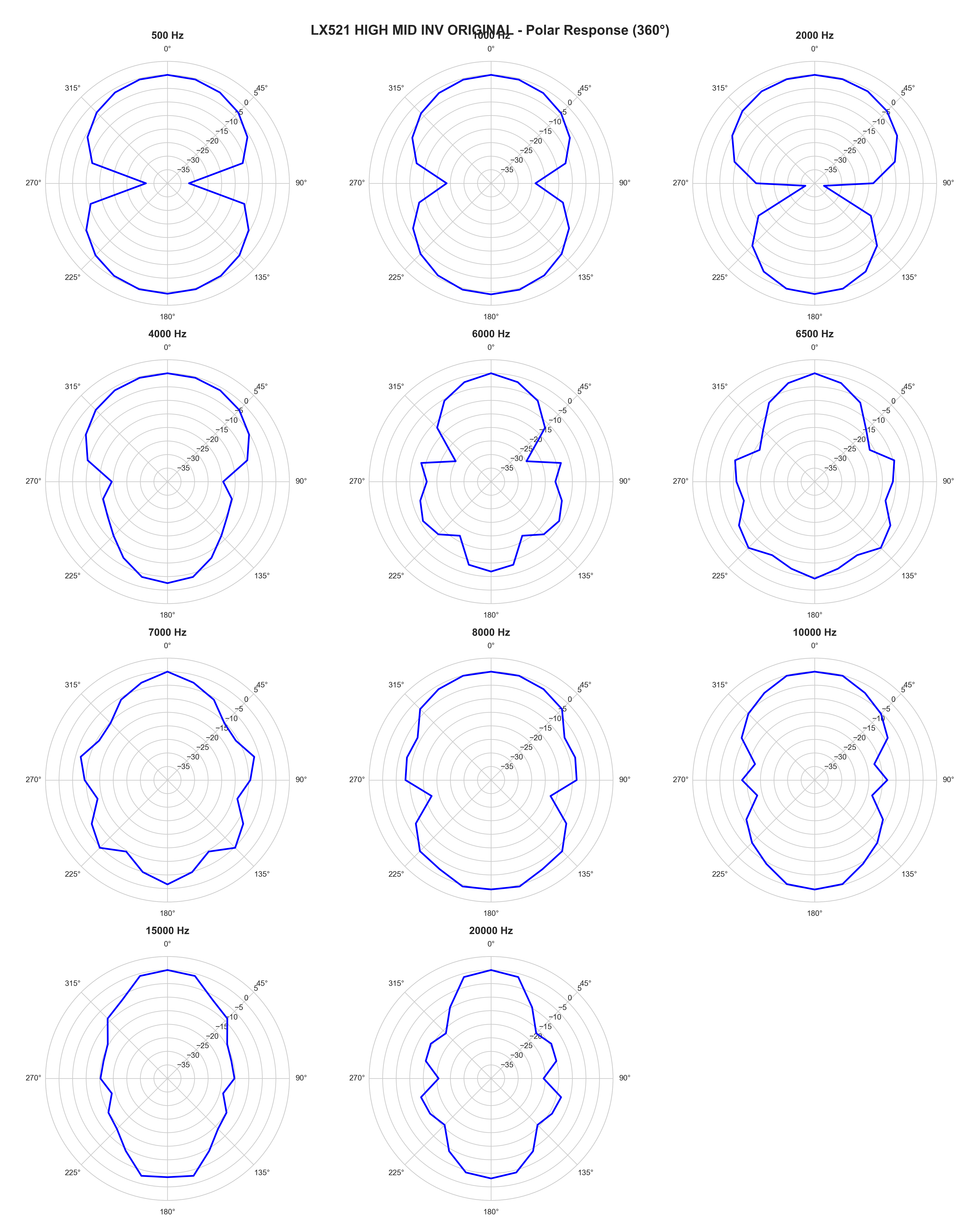

LX521 HIGH MID INV ORIGINAL (360 deg)

Contour Plots (Normalized)

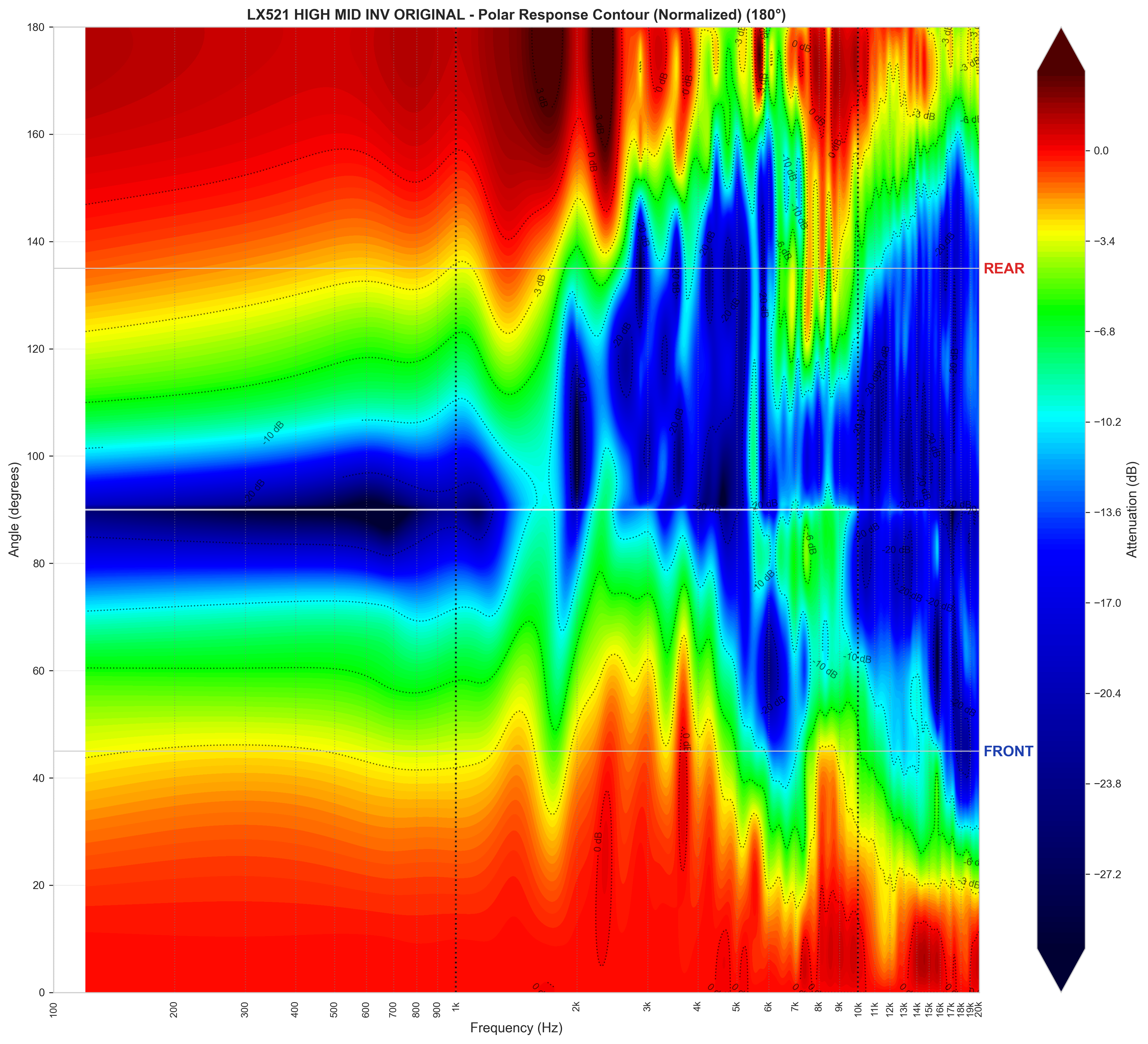

LX521 HIGH MID INV ORIGINAL_contour_normalized.png
LX521 HIGH MID INV ORIGINAL

Contour Plots (Absolute)

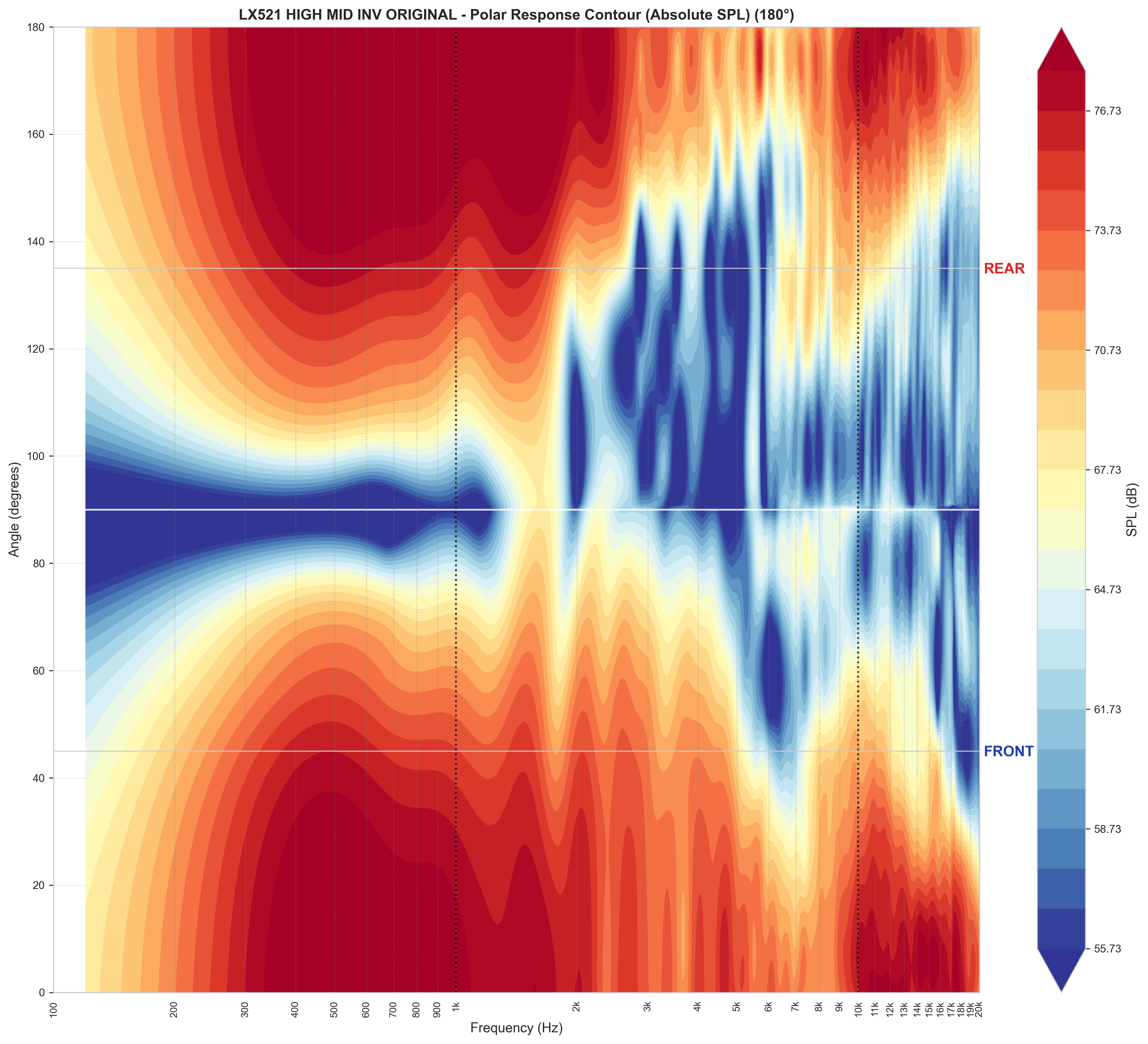

LX521 HIGH MID INV ORIGINAL_contour_absolute.png
LX521 HIGH MID INV ORIGINAL

Frequency Response by Angle

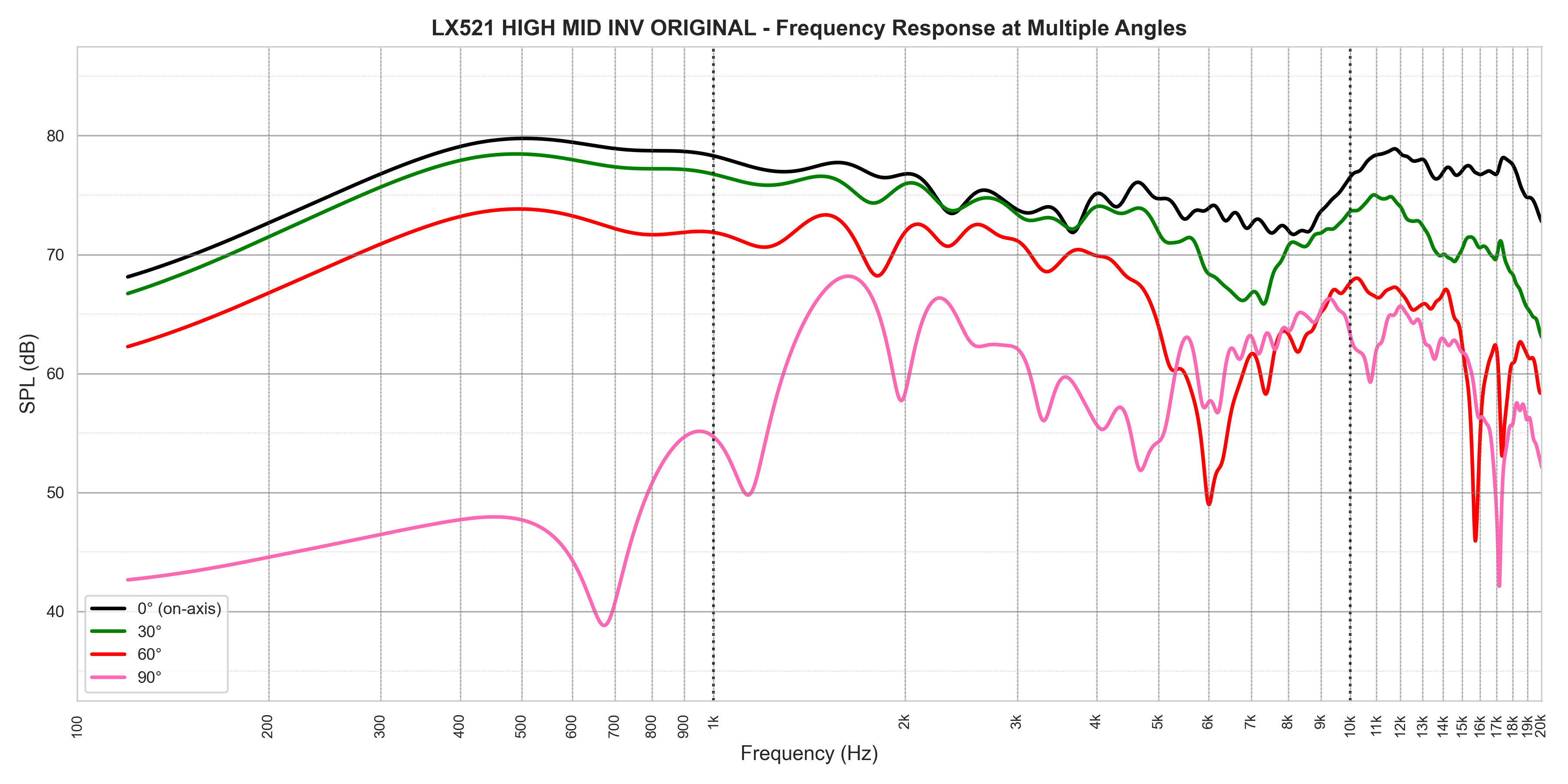

LX521 HIGH MID INV ORIGINAL_freq_response_angles.png
LX521 HIGH MID INV ORIGINAL

Frequency Response Normalized (0° = ref)

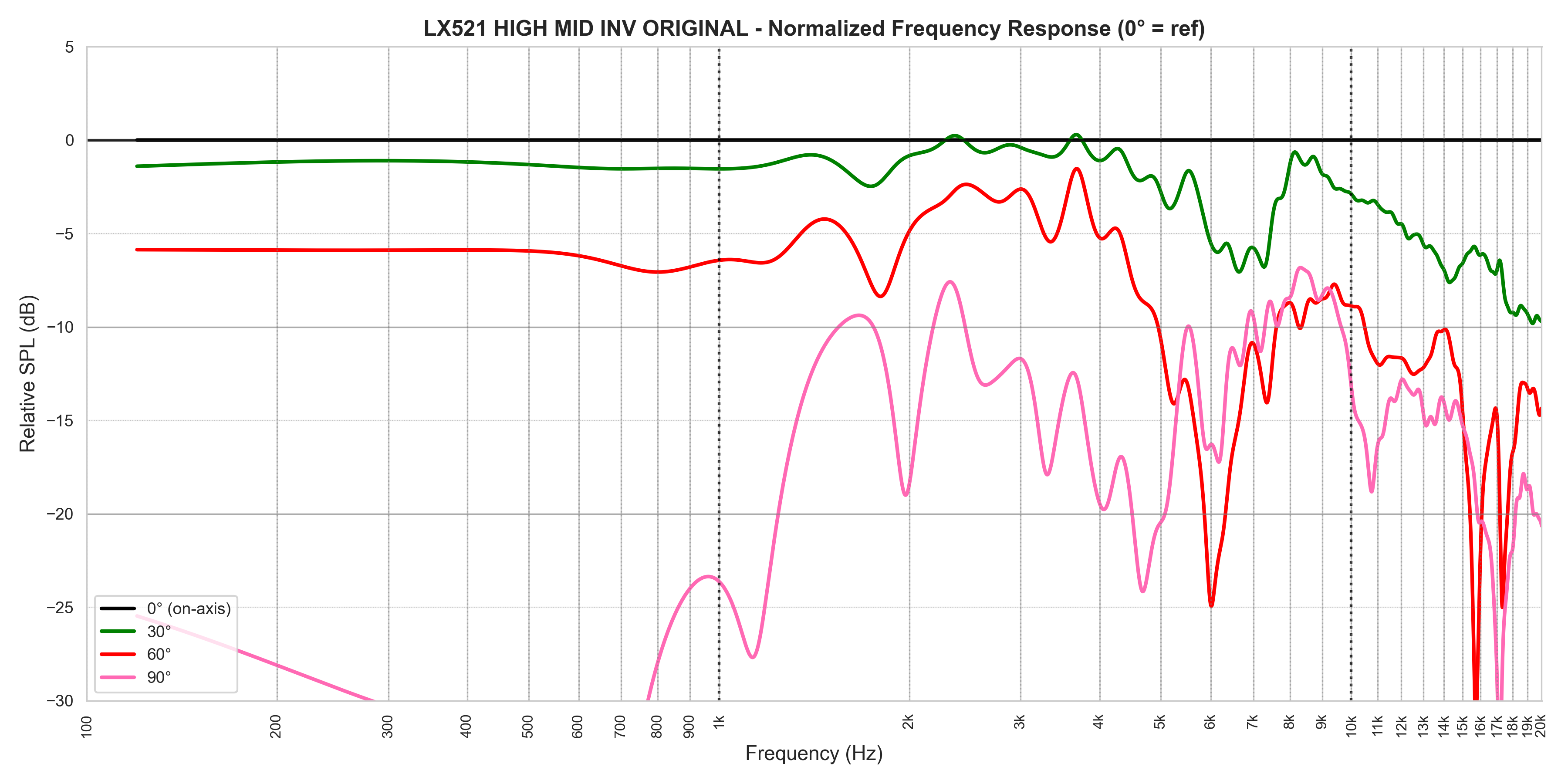

LX521 HIGH MID INV ORIGINAL_freq_response_normalized.png
LX521 HIGH MID INV ORIGINAL
